Packing Key Bypass

info
This feature is only available on certain plans, starting at the business level.
Team Plan
Not Available
Business Plan
Available
Enterprise Plan
Available

Overview​

Key Concepts: Packing Key, Registered Device, Authentication / Authorization

While the most protection is achieved through the consistent utilization of a packing key to unlock your sensitive data it is also possible to remove this step and streamline the authentication / authorization process. Please read more on our approach to the authentication / authorization process so that you may understand the issues related to bypassing a packing key.

Prerequisites​

Before you can configure your account to bypass entering a packing key you must meet the following requirements.

  • You must be on the proper subscription level.
  • Your organization must allow device registrations.
  • Your organization must allow packing key bypass.
  • Each device you wish to utilize the bypass process must be enrolled individually.
note

If your subscription level downgrades to a tier not supported by this feature your account will be required to enter a packing key upon login regardless of prior enrollment status.

Changes to the Login Flow​

When a user attempts to access Passpack a login workflow is initiated containing stepwise authentication and authorization steps. The Packing Key Bypass capability only alters the "Packing Key" step; a user must still adhere and meet the regular "Authentication" and "MFA" login requirements configured for their account. For example, if an account is configured to require an MFA code then the user must enter an MFA code before the Packing Key Bypass capability is triggered.

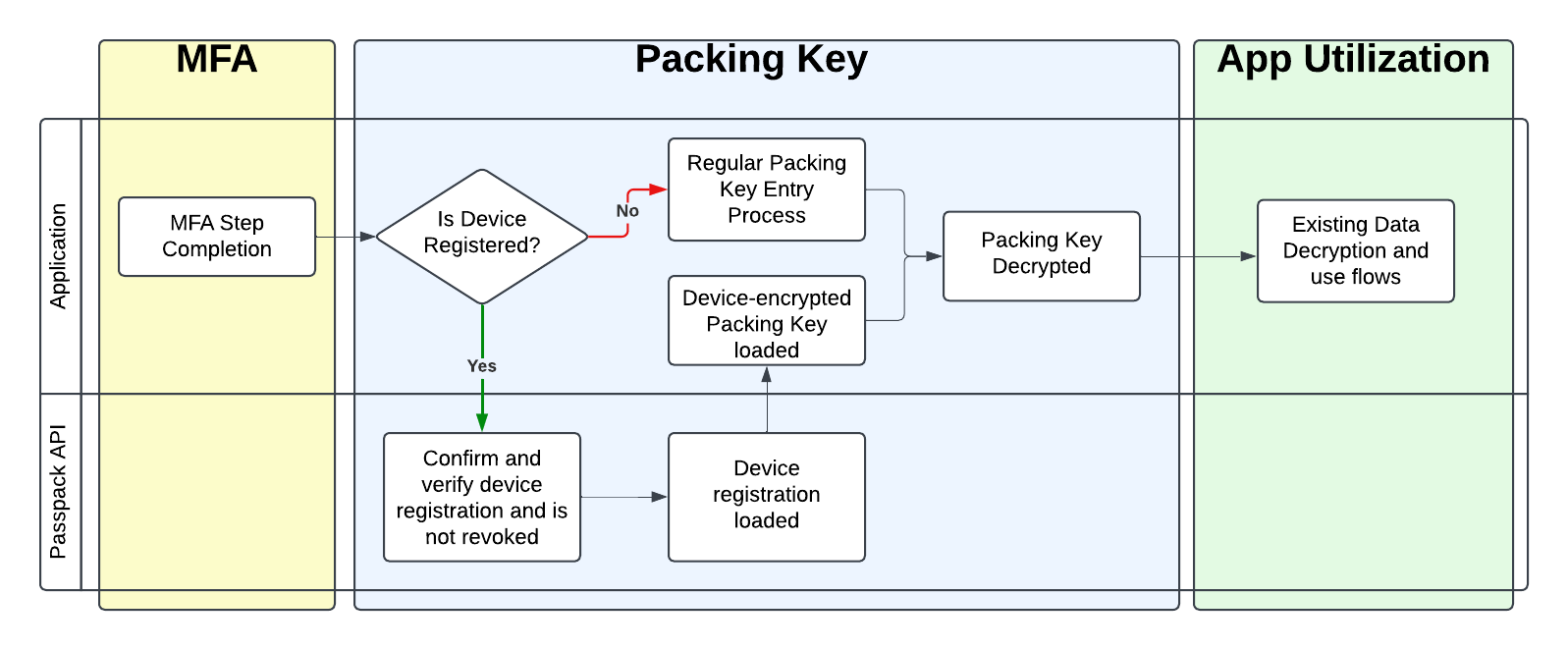

Below is a simplified diagram indicating the flow change: Packing Key Bypass Login Flow Change

warning

While enabling this capability may lead to fewer steps in the login workflow it does transfer some of the security from the user to a trusted device. Trust may be fluid in the world of ever evolving threats, and it is the user's responsibility manage those threats. The Packing Key Passphrase is intended to be a piece of information that only the user is capable of entering. We highly recommend ensuring your computer always applies security updates for the operating system and browser application as guided by your organization security guidelines.

Technical Details and Approach​

Fully enabling Packing Key Bypass on your account entails registering a device and then enabling that device registration to enable Packing Key Bypass.

Step 1. Device Registration​

Please refer to the Device Registration Process for detailed information. You will not be able to proceed unless the device is registered.

Step 2. Enabling Packing Key Bypass​

After the device has been registered the appropriate device-specific encryption material has been created which will support Packing Key Bypass.

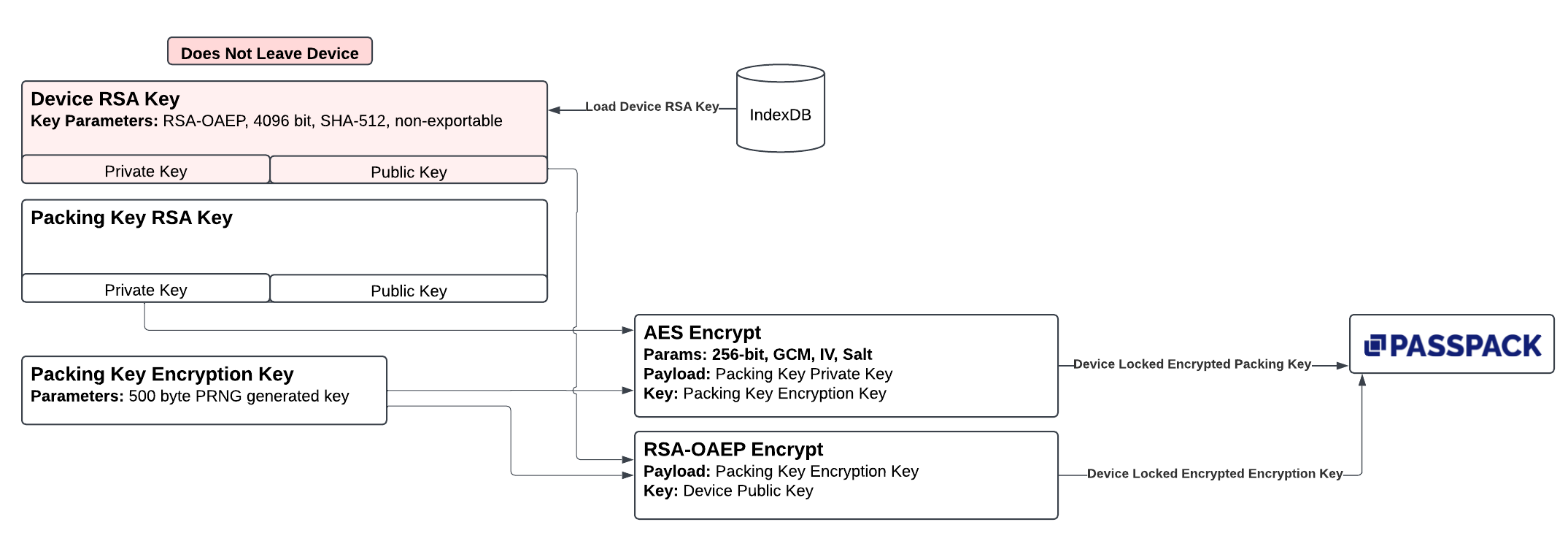

Below is a logical flow of the enrollment process.

Logical Flow Of Packing Key Bypass Enrollment

Description of Process​

The user may enable Packing Key Bypass by navigating to Settings -> Security -> Devices . The user will be asked if they wish to enable the bypass functionality which performs the following steps:

  • The Device RSA Key is retrieved from the browser's IndexDB.
  • One symmetrical key is generated using the cryptographically secure pseudorandom number generator within the browser. The keys are each 500 bytes long and are designated:
    • Packing Key Encryption Key - Used to encrypt the user's Packing Key RSA Key private portion of the RSA key.
  • The Packing Key RSA Key private portion is AES encrypted with Packing Key Encryption Key. The encrypted result is securely stored in the Passpack API for secure distribution. This creates a device-locked version of the packing key.
  • The Packing Key Encryption Key is RSA encrypted using the Device RSA Key and is securely stored in the Passpack API.

Once the process completes no new data is stored locally in the IndexDB.

Step 3. Packing Key Bypass In Action​

Once the device has been enrolled in the Packing Key Bypass the device is ready to execute a streamligned authentication and authorization flow the next login session.

note

Please remember - The bypass setting does not remove the need to log into the system nor enter an MFA, if required.

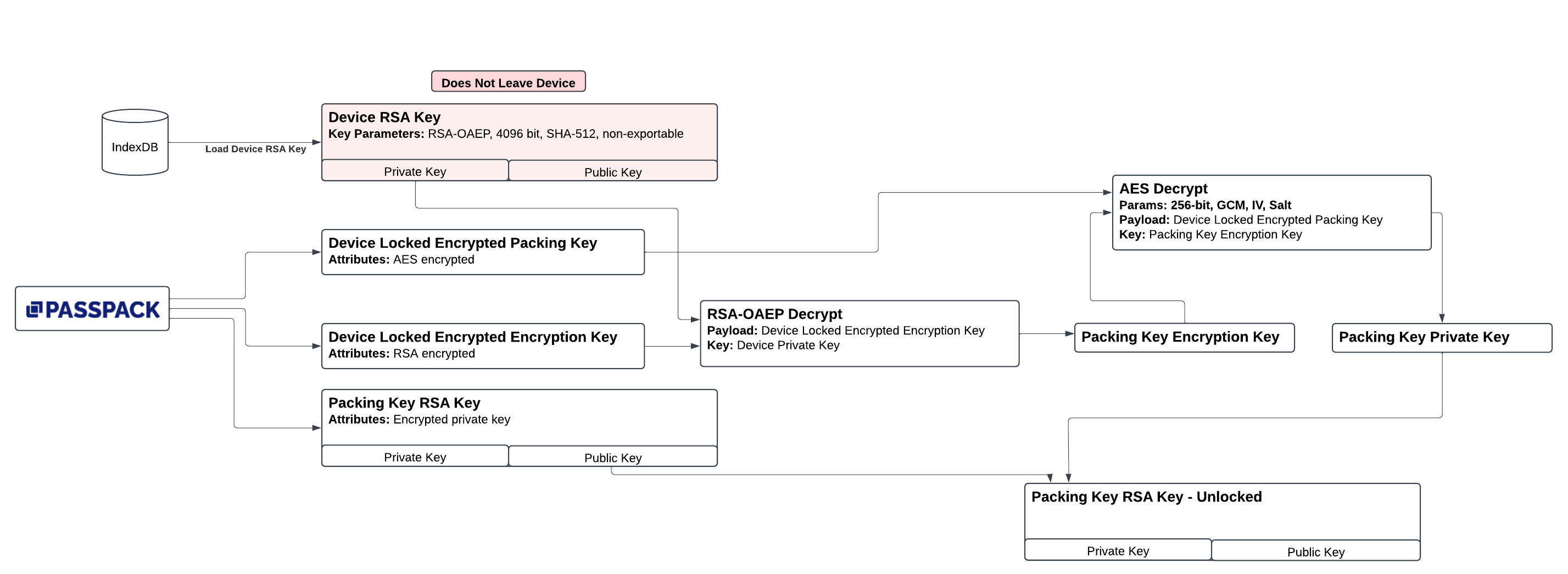

Below is a logical flow of the streamligned login process.

Logical Flow Of Packing Key Bypass Login

Description of Process​

  • The Device RSA Key is retrieved from the browser's IndexDB.
  • The browser sends a request to the server for several keys. Once authenticated the following keys are returned:
    • Device Locked Encrypted Packing Key Encryption Key
    • Device Locked Encrypted Packing Key
    • Packing Key RSA Key - This is the user's RSA key used in both bypass mode and not. It has an encrypted private key and the required public key for later use.
  • The Device Locked Encrypted Packing Key Encryption Key is decrypted using the Device RSA Key. The decrypted result is the Packing Key Encryption Key.
  • The Packing Key Encryption Key is used to decrypt the Device Locked Encrypted Packing Key resulting in the private portion of the users Packing Key RSA Key.
  • A new object is created in memory that combines the public portion of the Packing Key RSA Key downloaded from Passpack and the decrypted private portion of the Packing Key RSA Key. This keyset is then used to fully unlock the system.
